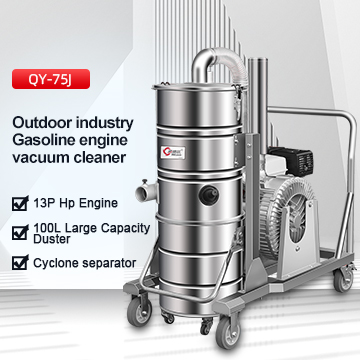

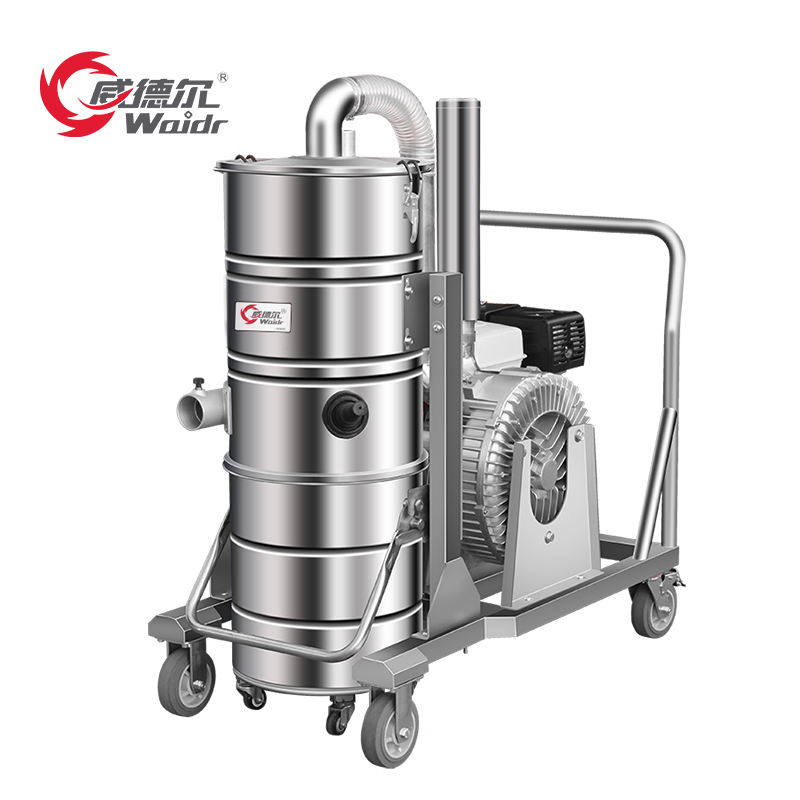

Features
1. Honda 13p engine, with strong suction, can be used for 2-3 hours with a refill, which can meet most outdoor work. The pump can work long time continuously and run smoothly.
2. Pressure relief valve: automatically open the compensation intake when the filter or suction is blocked to protect the motor.

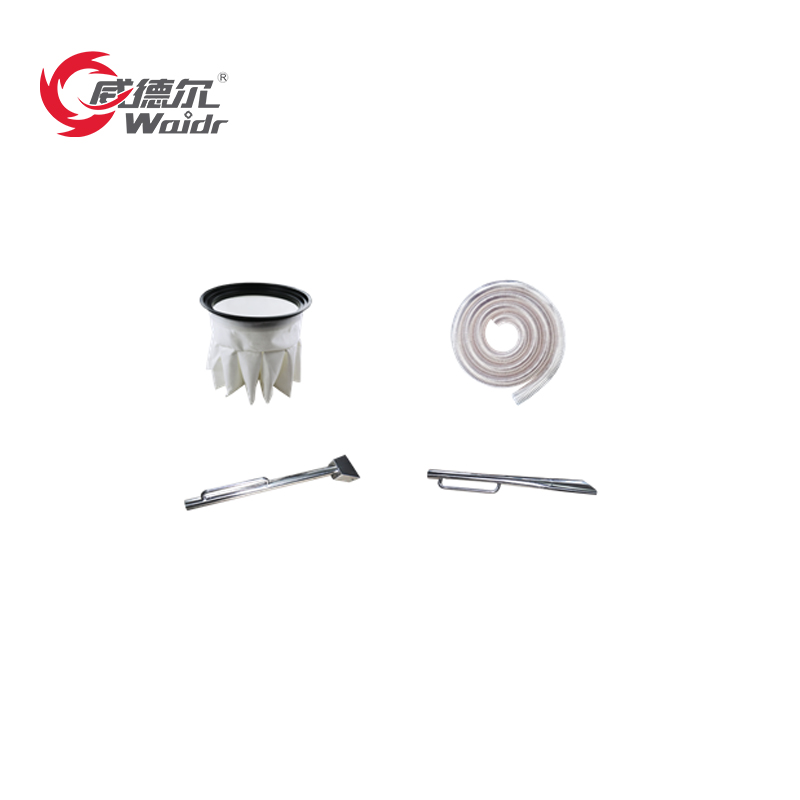

3. The star filter with filtering area of 28000cm², and it is washable and repeatable.
4. The machine body is fully made of stainless steel metal with strong bearing capacity and can adapt to different working conditions.
5. 100L capacity detachable dust bucket, fast and convenient to dump waste.
6. Manual cleaning system: the machine is equipped with manual dust vibration device, which can be easily shaken to clean the star shape filter, convenient and fast.
7. Cyclone separation system makes most of the dust particles fall directly to the bottom of the barrel while being inhaled, which extends the service life of the filter.
Working Environment
Working area: Mainly used for road maintenance, environmental protection vacuum cleaning, highway maintenance, road construction, suitable for places where power is inconvenient.
Suitable for vacuuming Stones, dirt, stones in crevices, etc.
Technical Parameter
Model | QY-75J |
Power (KW) | OIL |
Fuel tank capacity(L) | 3..5 |
Oil fuel(L) | 0.6 |
Minimum fuel consumption(L) | 0.32 |
Airflow (m3/h) | 320 |
Vacuum (mbar) | 530 |
Noise level (dB) | 68 |
Filter area (cm2) | 28000 |
Barrel capacity (L) | 100 |
Inlet (mm) | 50 |
Filter type | Star shape filter |
Machine weight (kg) | 135 |
Machine size (mm) | 1100*600*1450 |
