Features
1. The turbine fan can work 24h continuously and run smoothly.
2. Control switch: separate switch panel, One-click start/stop the motor power supply;
3. Reverse air path design: The machine adopts reverse air path design, which can effectively compress the absorbed material and prevent clogging;
4. The HEPA filter is made of polyester fiber with filtering area of 38800cm².
5. 120L industrial large capacity dust bucket, high collection efficiency, with nylon collection bag, easy to clean;
6. It can be used in conjunction with other equipment to vacuum while working and improve production efficiency.
Working Environment
Working place: Garment factory, textile factory, paper factory, knitting manufacturing, fiber manufacturing, etc
Suitable for absorbing lighter materials such as plastic debris, waste thread, flocs, paper scraps, cotton wadding, rags, flying flocs, etc.
Technical Parameter
Model | FM100/22 | FM100/30 | FM100/40 | FM100/55 | FM100/75 |
Voltage (V) | 380 | ||||
Power (KW) | 2.2 | 3.0 | 4.0 | 5.5 | 7.5 |
Airflow (m3/h) | 275 | 318 | 420 | 700 | 700 |
Vacuum (mbar) | 248 | 270 | 270 | 280 | 300 |
Noise level (dB) | 65 | 67 | 69 | 71 | 73 |
Filter area (cm2) | 38800 | ||||
Barrel capacity (L) | 120 | ||||
Cable length (m) | 5 | ||||
Inlet (mm) | 50 | ||||

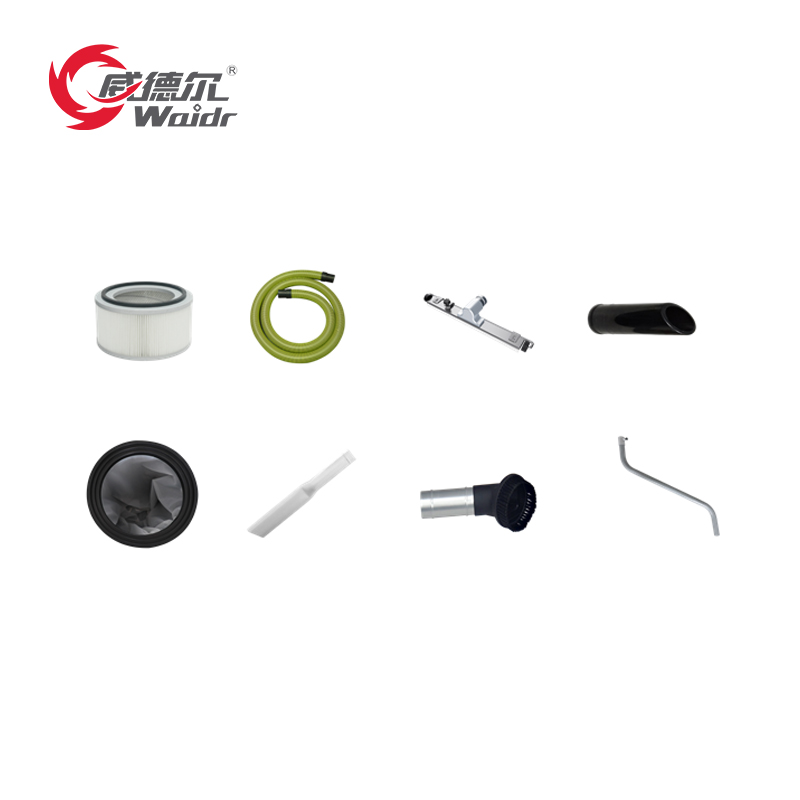

Filter type | HEPA and Nylon filter bag | ||||
Machine weight (kg) | 65 | 73 | 80 | 120 | 135 |
Machine size (mm) | 1020*630*1130 |
